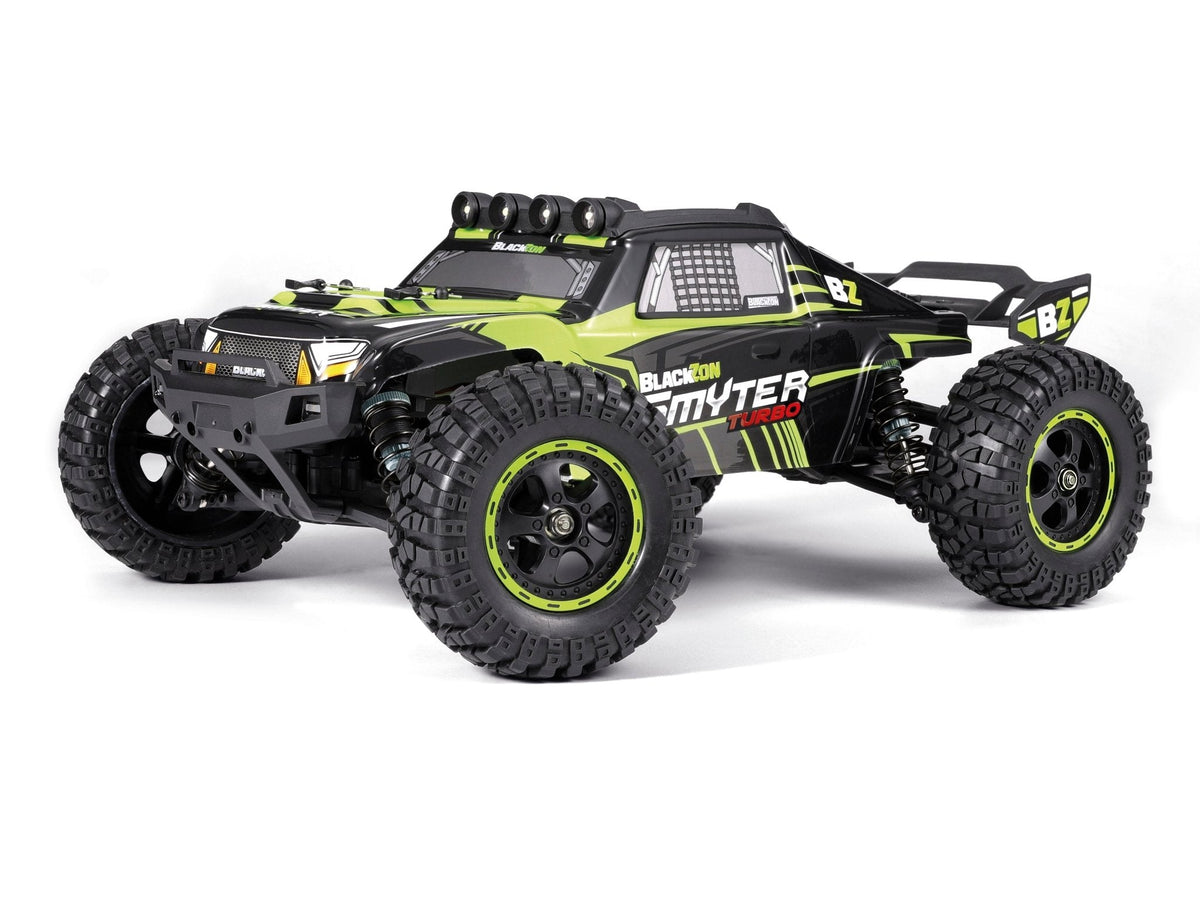

BlackZon Smyter DT Turbo 1/12 4WD Brushless Desert Truck RTR - Green
BZN540231
$169.99
Kit Information
Overview
The BlackZon Smyter DT Turbo is a 1/12 scale 4WD desert truck with a 3S-capable brushless system: 45 km/h on the included 2S LiPo and up to 70 km/h on 3S. Steel differentials, metal driveshafts and oil-filled shocks make it a durable step up for drivers who have outgrown a brushed truck.
Features
- 4WD shaft-driven drivetrain
- 3S-capable brushless power system
- Adjustable oil-filled coilover shocks
- 4-gear steel differentials front and rear
- Metal driveshafts and hex hubs front and rear
- Independent double wishbone suspension
- Gear cover keeps debris away from the spur gear
- Dual-point bell crank steering
- Servo saver built into the servo horn
- Complete set of ball bearings
- Splashproof electronics
- 2.4GHz radio with 2-in-1 ESC/receiver
Specifications
| Brand | BlackZon |
|---|---|
| Part number | BZN540231 |
| UPC / EAN | 5700135402315 |
| Color | Green |
| Format | Ready-to-Run (RTR) |
| Scale | 1/12 |
| Drive | 4WD shaft |
| Motor | Brushless 2847 4200KV |
| ESC | Brushless 2-in-1 ESC/receiver, 2S-3S capable |
| Radio | 2.4GHz 3-channel |
| Servo | Digital, plastic gear, 3-wire, 2.2 kg-cm |
| Battery (included) | LiPo 2S 7.4V 1600mAh |
| Connector | T-Plug |
| Charger | USB |
| Top speed (2S) | 45 km/h (28 mph) |
| Top speed (3S) | 70 km/h (43 mph) |
| Length | 380 mm |
| Width | 255 mm |
| Height | 150 mm |
| Wheelbase | 240 mm |
| Wheel diameter | 95 mm |
| Wheel width | 35 mm |
What's in the Box
- Assembled Smyter DT Turbo with painted body
- 2.4GHz transmitter
- LiPo 2S 7.4V 1600mAh battery (T-Plug)
- USB charger
- LED roof light
Needed to Complete
- 3 x AA batteries for the transmitter
Chassis Components (2)
Drivetrain (8)
- #BZN540129 BlackZon Diff Bulkhead Housing (Front/Rear), Smyter View
- #BZN540236 BlackZon Smyter MT Turbo Complete Differential (Steel Gears/Diff. Cups) View
- #BZN540237 BlackZon Smyter MT Turbo Steel Spur Gear & Differential Pinion Set View
- #BZN540238 BlackZon Smyter MT Turbo Metal Diff. OutDrive Cups (4pcs) View
- #BZN540239 BlackZon Smyter MT Turbo Front Universal Drive Shafts (Steel/2pcs) View
- #BZN540240 BlackZon Smyter MT Turbo Rear Drive Shafts (Steel/2pcs) View
- #BZN540242 BlackZon Smyter MT Turbo HD Center Driveshaft & Drive Cup Set View
- #BZN540243 BlackZon Smyter MT Turbo Metal 12mm Hex Hub Set View
Suspension & Steering (3)
Electronics (17)
- #BZN540043 BlackZon USB Charger, Slyder & Turbo Slyder View
- #BZN540122 BlackZon Steering & Servo Link Set, Smyter View
- #BZN540125 BlackZon Steering Assembly & Servo Mount Set, Smyter View
- #BZN540130 BlackZon Motor Mount/Front Steering Plate Set, Smyter View
- #BZN540134 BlackZon Servo Saver Assembly, Smyter View
- #BZN540144 BlackZon Motor Heatsink, Smyter View
- #BZN540147 BlackZon Servo 2.2Kg (3-Wire), Smyter View
- #BZN540150 BlackZon Battery Binding Strap, Smyter View
- #BZN540164 BlackZon DT Roof Light Mount, Smyter View
- #BZN540165 BlackZon DT Roof Light , Smyter View
- #BZN540166 BlackZon Headlight LED , Smyter View
- #BZN540244 BlackZon Smyter MT Turbo Motor Pinion (3.175/12T/0.6M) View
- #BZN540245 BlackZon Smyter MT Turbo 3S Brushless ESC/Receiver View
- #BZN540246 BlackZon Smyter MT Turbo Brushless Motor 2847 4200KV View
- #BZN540247 BlackZon Turbo Smyter Battery Pack (LiPo 7.4V, 1600mAh), w/T-Plug LIPO Shipping Restrictions Apply View
- #BZN540248 BlackZon Smyter MT Turbo Battery Pack (LiPo 11.1V, 2200mAh), w/T-Plug LIPO Shipping Restrictions Apply View
- #BZN540249 BlackZon Smyter MT Turbo USB Battery Charger (3S) View
Hardware (3)
Oils, Grease & Tools (2)
Other Parts (22)
- #BZN540044 BlackZon Ball Bearings 7.93x12.7x3.95mm, Slyder & Turbo Slyder View
- #BZN540045 BlackZon Ball Bearings 6.35x9.53x3.17mm, Slyder & Turbo Slyder View
- #BZN540048 BlackZon Pan head Self Tapping Screws PBHO2.6x10mm, Slyder & Turbo Slyder View
- #BZN540050 BlackZon Countersunk Self Tapping Screws KBHO2.6x12mm, Slyder & Turbo Slyder View
- #BZN540051 BlackZon Set Screws 2.5x2.5mm, Slyder & Turbo Slyder View
- #BZN540053 BlackZon Pan Head Self Tapping Screws PBHO2.6x12mm, Slyder & Turbo Slyder View
- #BZN540056 BlackZon Countersunk Self Tapping Screws KBHO2.3x12mm, Slyder & Turbo Slyder View
- #BZN540057 BlackZon Flange Head Self Tapping Screws PWTHO2.6x12mm, Slyder & Turbo Slyder View
- #BZN540140 BlackZon Ball 4.8x7.8mm (12pcs), Smyter View
- #BZN540141 BlackZon Ball 4.8x6.5mm (8pcs), Smyter View
- #BZN540142 BlackZon Ball 5.8x7mm (8pcs), Smyter View
- #BZN540143 BlackZon Ball Stud 4.8x12mm (12pcs), Smyter View
- #BZN540152 BlackZon Set Screws M3x3mm (12pcs) View
- #BZN540153 BlackZon Pan Head Self Tapping Screws PBHO2.6x8mm (12pcs) View
- #BZN540154 BlackZon Pan Head Self Tapping Screws PBHO2.6x6mm (12pcs) View
- #BZN540155 BlackZon Countersunk Self Tapping Screws KBHO2.6x6mm (12pcs) View
- #BZN540156 BlackZon Pan Head Self Tapping Screws PBHO3x15mm (12pcs) View
- #BZN540157 BlackZon Pan Head Screws 2.5x6mm (12pcs) View
- #BZN540159 BlackZon Pan Head Self Tapping Screws PBHO2.6x25mm (12pcs) View
- #BZN540160 BlackZon Countersunk Self Tapping KBHO2x12mm (12pcs) View
- #BZN540174 BlackZon Pan Head Self Tapping Screws 2x4mm View
- #BZN540224 BlackZon 2.4GHz Radio-For Turbo Models View
Parts list for BlackZon #BZN540231, per manufacturer/distributor data.
Bodies & Accessories (5)
Parts list for BlackZon #BZN540231, per manufacturer/distributor data.
Wheels & Tires (4)
Parts list for BlackZon #BZN540231, per manufacturer/distributor data.
