BlackZon Vyper SC Turbo 1/16 4WD Brushless Short Course Truck RTR - Blue/Orange
$139.99
Skip to product information
In stock
BlackZon Vyper SC Turbo 1/16 4WD Brushless Short Course Truck RTR - Blue/Orange
BZN540276
$139.99
Kit Information
Overview

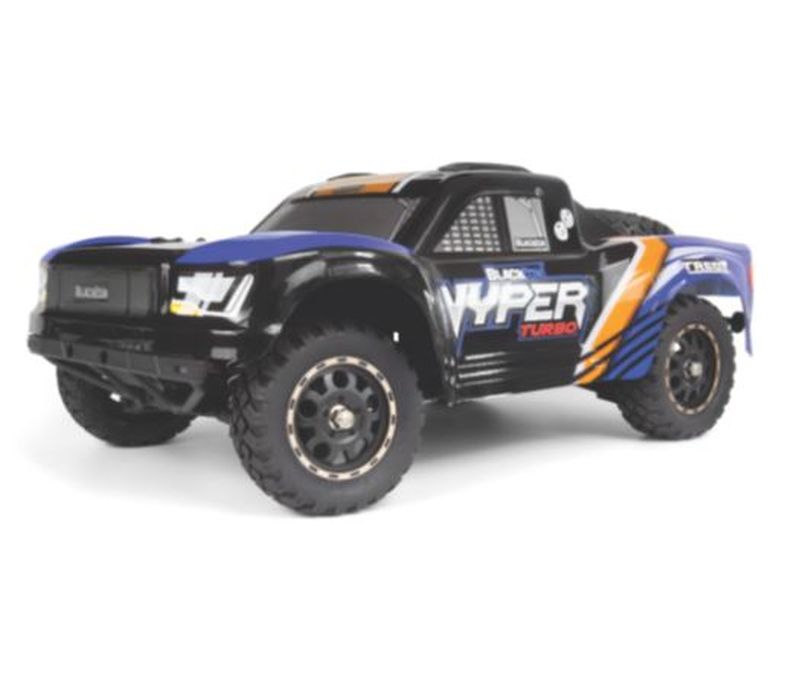

The BlackZon Vyper SC Turbo is a 1/16 scale 4WD short course truck powered by a 2840 3800KV brushless motor and a 3S-capable 2-in-1 ESC/receiver. It ships Ready-to-Run with a 2S LiPo and 2.4GHz transmitter, giving beginners and intermediate drivers more speed and torque on any terrain.
Features
- 4WD shaft-driven short course truck
- Composite tub chassis
- Independent double wishbone suspension
- Gear cover keeps debris away from the spur gear
- Dual-point bell crank steering with servo saver
- Front and rear bumper LED lights
- Aluminum oil-filled adjustable coilover shocks
- Metal gear differentials front and rear
- Metal spur gear
- Metal driveshafts
Specifications
| Brand | BlackZon |
|---|---|
| Part number | BZN540276 |
| UPC / EAN | 5700135402766 |
| Color | Blue/Orange |
| Format | Ready-to-Run (RTR) |
| Scale | 1/16 |
| Drive | 4WD shaft |
| Motor | Brushless 2840 3800KV |
| ESC | BlackZon BL14-200-3S 2-in-1 ESC/receiver |
| Servo | 3-wire steering servo |
| Radio | BlackZon BTX-243 2.4GHz 3-channel |
| Battery (included) | LiPo 2S 7.4V 1600mAh |
| Connector | T-Plug |
| Charger | 7.4V USB |
| Length | 348 mm |
| Width | 185 mm |
| Height | 136 mm |
| Wheelbase | 210 mm |
What's in the Box
- Assembled Vyper SC Turbo with painted body
- BlackZon BTX-243 2.4GHz transmitter
- LiPo 2S 7.4V 1600mAh battery
- 7.4V USB charger
Needed to Complete
- AA batteries for the transmitter (quantity not stated by the manufacturer)
Chassis Components (4)
Drivetrain (10)
- #BZN540243 BlackZon Smyter MT Turbo Metal 12mm Hex Hub Set View
- #BZN540435 BlackZon Assembled Differential for Vyper View
- #BZN540437 BlackZon C-Hub Set (2pcs) for Vyper View
- #BZN540439 BlackZon Dogbone Driveshaft (2pcs) for Vyper View
- #BZN540440 BlackZon Front Axle Axle (2pcs) for Vyper View
- #BZN540441 BlackZon Rear Axle Axle (2pcs) for Vyper View
- #BZN540442 BlackZon Differential Cup (2pcs) for Vyper View
- #BZN540443 BlackZon Center Shaft & Cup Set for Vyper View
- #BZN540444 BlackZon 50T Spur Gear (0.6M) for Vyper View
- #BZN540448 BlackZon Pinion Gear 16T with Screw Set for Vyper View
Suspension & Steering (12)
- #BZN540058 BlackZon Steering Hub Step Screws, Slyder & Turbo Slyder View
- #BZN540428 BlackZon Front Aluminum Shock Set (Assembled/2pcs) for Vyper View
- #BZN540429 BlackZon Rear Aluminum Shock Set (Assembled/2pcs) for Vyper View
- #BZN540430 BlackZon Front Lower Suspension Arm Set (2pcs) for Vyper View
- #BZN540431 BlackZon Front Upper Link Set (2pcs) for Vyper View
- #BZN540432 BlackZon Rear Lower Suspension Arm Set (2pcs) for Vyper View
- #BZN540433 BlackZon Rear Upper Suspension Arm Set (2pcs) for Vyper View
- #BZN540436 BlackZon Steering Hubs (2pcs) for Vyper View
- #BZN540445 BlackZon Upper Suspension Hinge Bolts (4pcs) for Vyper View
- #BZN540446 BlackZon Lower Suspension Hinge Pins (4pcs) for Vyper View
- #BZN540450 BlackZon Steering Posts (4pcs) for Vyper View
- #BZN540452 BlackZon Steering Hub Bolts 2.8x12.5mm (4pcs) for Vyper View
Electronics (15)
- #BZN540040 BlackZon Battery Binding Strap, Slyder & Turbo Slyder View
- #BZN540144 BlackZon Motor Heatsink, Smyter View
- #BZN540149 BlackZon Battery Pack (Li-ion 7.4V, 1500mAh), w/T-Plug, Smyter LIPO Shipping Restrictions Apply View
- #BZN540247 BlackZon Turbo Smyter Battery Pack (LiPo 7.4V, 1600mAh), w/T-Plug LIPO Shipping Restrictions Apply View
- #BZN540331 BlackZon Servo Horn Spring, 4pcs for Spryte View
- #BZN540421 BlackZon Upper Deck & Motor Mount for Vyper View
- #BZN540426 BlackZon Steering Posts, Ackerman & Servo Plate for Vyper View
- #BZN540427 BlackZon Steering Link & Servo Link Set for Vyper View
- #BZN540449 BlackZon LED Headlight for Vyper View
- #BZN540455 BlackZon Brushless Motor 2840 KV3800 for Vyper Turbo View
- #BZN540456 BlackZon 3-Wire Steering Servo for Vyper View
- #BZN540464 BlackZon Blackzon BL14-200-3S 2 in 1 ESC/Receiver for Vyper Turbo View
- #BZN540465 BlackZon ESC/Receiver Cooling Fan for Vyper Turbo View
- #BZN540467 BlackZon Blackzon BTX-243- 2.4GHz 3Ch Transmitter for Vyper Turbo View
- #BZN540468 BlackZon LED Taillight for Vyper View
Hardware (2)
Other Parts (19)
- #BZN540044 BlackZon Ball Bearings 7.93x12.7x3.95mm, Slyder & Turbo Slyder View
- #BZN540045 BlackZon Ball Bearings 6.35x9.53x3.17mm, Slyder & Turbo Slyder View
- #BZN540048 BlackZon Pan head Self Tapping Screws PBHO2.6x10mm, Slyder & Turbo Slyder View
- #BZN540053 BlackZon Pan Head Self Tapping Screws PBHO2.6x12mm, Slyder & Turbo Slyder View
- #BZN540056 BlackZon Countersunk Self Tapping Screws KBHO2.3x12mm, Slyder & Turbo Slyder View
- #BZN540057 BlackZon Flange Head Self Tapping Screws PWTHO2.6x12mm, Slyder & Turbo Slyder View
- #BZN540140 BlackZon Ball 4.8x7.8mm (12pcs), Smyter View
- #BZN540143 BlackZon Ball Stud 4.8x12mm (12pcs), Smyter View
- #BZN540152 BlackZon Set Screws M3x3mm (12pcs) View
- #BZN540153 BlackZon Pan Head Self Tapping Screws PBHO2.6x8mm (12pcs) View
- #BZN540351 BlackZon Pan Head Self-Tapping Screws BMHO2.5x8mm for Spryte View
- #BZN540354 BlackZon Pan Head Self-Tapping Screws PBHO2x4mm for Spryte View
- #BZN540438 BlackZon Rear Hubs (2pcs) for Vyper View
- #BZN540447 BlackZon 3.8mm Metal Balls (12pcs) for Vyper View
- #BZN540453 BlackZon M4 Flanged Lock Nuts (6pcs) for Vyper View
- #BZN540458 BlackZon Pan Head Tapping Screws PBHO3x12mm (12pcs) for Vyper View
- #BZN540459 BlackZon Pan Head Screws 3x30mm (12pcs) for Vyper View
- #BZN540460 BlackZon Pan Head Tapping Screws PBHO2.6x6mm (12pcs) for Vyper View
- #BZN540462 BlackZon Flange Tapping Screws PWAO2.3x7mm (12pcs) for Vyper View
Parts list for BlackZon #BZN540276, per manufacturer/distributor data.
Bodies & Accessories (7)
- #BZN540277 BlackZon Vyper SC Printed Body - Green for Vyper View
- #BZN540278 BlackZon Vyper SC Printed Body - Blue/Green for Vyper View
- #BZN540279 BlackZon Vyper SC Printed Body - Red/Orange for Vyper View
- #BZN540280 BlackZon Vyper SC Printed Body - Blue/Orange for Vyper View
- #BZN540425 BlackZon Front & Rear Shock Tower Set with Body posts for Vyper View
- #BZN540434 BlackZon Body Accessory Set for Vyper View
- #BZN540457 BlackZon Body Clips (4pcs) for Vyper View
Parts list for BlackZon #BZN540276, per manufacturer/distributor data.
Wheels & Tires (3)
Parts list for BlackZon #BZN540276, per manufacturer/distributor data.
Downloads & Specifications
Official manuals, exploded views and electronics guides from the manufacturer.
