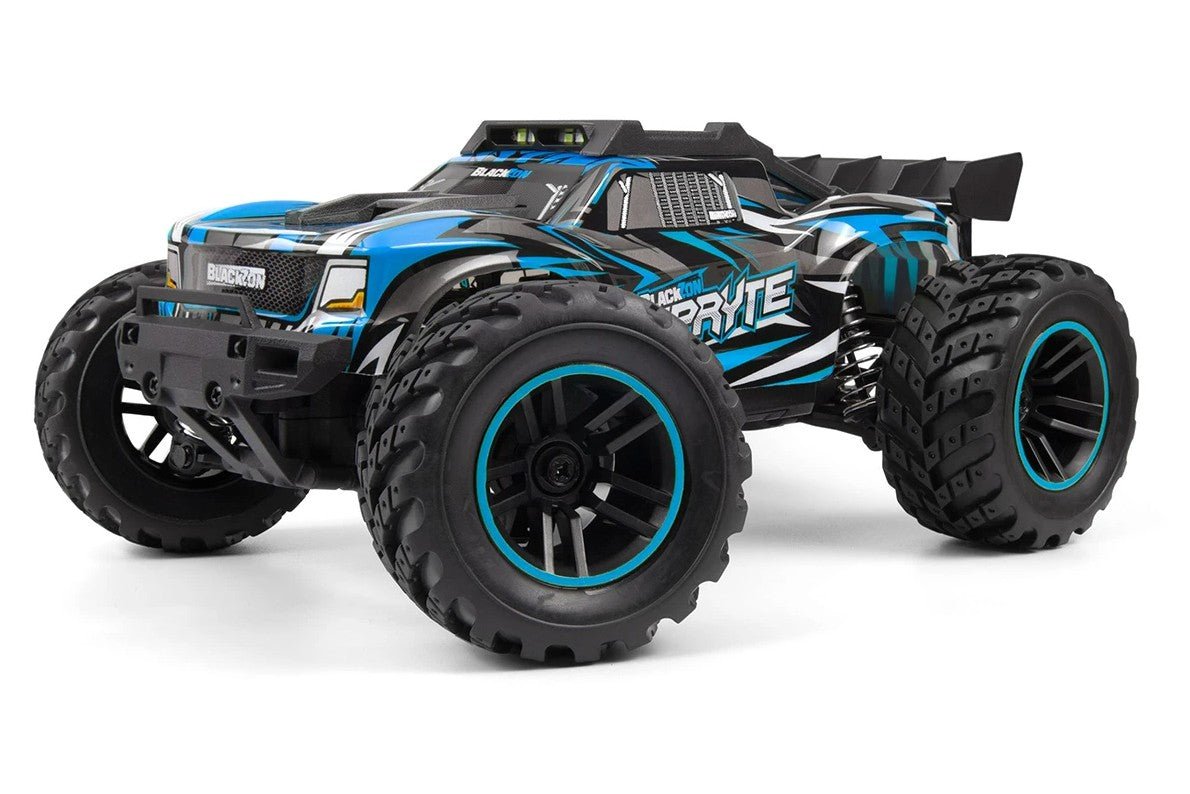

BlackZon Spryte ST 1/20 4WD Stadium Truck RTR - Blue
$44.99
Skip to product information
Out of stock — available for Pre-Order
BlackZon Spryte ST 1/20 4WD Stadium Truck RTR - Blue
BZN540306
$44.99
Kit Information
Overview
The BlackZon Spryte ST is a 1/20 scale 4WD Ready-to-Run stadium truck made for first-time drivers who want to jump, stunt and bash without a big budget. It is small enough for indoor use but has a real shaft-driven 4WD drivetrain, independent suspension and gear differentials.
Features
- 4WD shaft-driven drivetrain
- Independent double wishbone suspension
- Coilover shocks
- Gear differentials front and rear
- Enclosed chassis cover
- Dual-point bell crank steering with servo saver
- 290 brushed motor
- 2.4GHz radio with 2-in-1 ESC/receiver
- Speed limiter via throttle trim on the transmitter
- Pre-cut, factory-finished bodyshell
Specifications
| Brand | BlackZon |
|---|---|
| Part number | BZN540306 |
| UPC / EAN | 5700135403060 |
| Color | Blue |
| Format | Ready-to-Run (RTR) |
| Scale | 1/20 |
| Drive | 4WD shaft |
| Motor | 290 brushed |
| ESC | Brushed 2-in-1 ESC/receiver |
| Servo | Digital, plastic gear, 5-wire |
| Radio | 2.4GHz 3-channel |
| Battery (included) | Li-ion 7.4V 600mAh |
| Connector | BEC |
| Charger | USB |
| Length | 210 mm |
| Width | 165 mm |
| Height | 100 mm |
| Wheelbase | 132 mm |
What's in the Box
- Assembled Spryte vehicle with painted body
- 2.4GHz 3-channel transmitter
- Li-ion 7.4V 600mAh battery
- USB charger
Needed to Complete
- 2 x AA batteries for the transmitter
Chassis Components (3)
Drivetrain (4)
Suspension & Steering (6)
- #BZN540313 BlackZon Shock Tower Set (Front/Rear) for Spryte View
- #BZN540314 BlackZon Upright Set (Left/Right), 4pcs for Spryte View
- #BZN540315 BlackZon Suspension Arm Set (Front/Rear) for Spryte View
- #BZN540317 BlackZon Shock Absorber Set, 4pcs for Spryte View
- #BZN540322 BlackZon Pivot Ball Set for Spryte View
- #BZN540330 BlackZon Steering Post, 4pcs for Spryte View
Electronics (9)
- #BZN540316 BlackZon Steering and Motor Mount Set for Spryte View
- #BZN540331 BlackZon Servo Horn Spring, 4pcs for Spryte View
- #BZN540332 BlackZon Battery Cover Screws 2.3x6.5mm 4pcs for Spryte View
- #BZN540334 BlackZon ESC/Receiver PCB for Spryte View
- #BZN540335 BlackZon 5-Wire Servo (9g) for Spryte View
- #BZN540336 BlackZon 290 Motor with Pinion for Spryte View
- #BZN540337 BlackZon Battery Pack (L-Ion 7.4V, 600mAh) for Spryte LIPO Shipping Restrictions Apply View
- #BZN540338 BlackZon USB Charger for Spryte View
- #BZN540340 BlackZon Roof Light for Spryte View
Hardware (1)
Other Parts (10)
- #BZN540339 BlackZon 2.4Ghz Radio for Spryte View
- #BZN540350 BlackZon Countersunk Self-Tapping Screws KBHO2.3x10mm, View
- #BZN540351 BlackZon Pan Head Self-Tapping Screws BMHO2.5x8mm for Spryte View
- #BZN540352 BlackZon Pan Head Self-Tapping Screws BMHO2.3x10mm for Spryte View
- #BZN540353 BlackZon Countersunk Self-Tapping Screws KBHO2.3x4mm for Spryte View
- #BZN540354 BlackZon Pan Head Self-Tapping Screws PBHO2x4mm for Spryte View
- #BZN540355 BlackZon Pan Head Self-Tapping Screws PBHO2.3x7mm for Spryte View
- #BZN540356 BlackZon Countersunk Self-Tapping Screws KBHO1.5x13mm View
- #BZN540357 BlackZon Flange Head Self-Tapping Screws PWTHO2.5x12mm View
- #BZN540358 BlackZon Countersunk Self-Tapping Screws KBHO2x4mm for Spryte View
Parts list for BlackZon #BZN540306, per manufacturer/distributor data.
Bodies & Accessories (7)
- #BZN540320 BlackZon MT Body Parts Set for Spryte View
- #BZN540321 BlackZon ST Body Parts Set for Spryte View
- #BZN540341 BlackZon Body Clips, 4pcs for Spryte View
- #BZN540346 BlackZon Spryte ST Body (Green) View
- #BZN540347 BlackZon Spryte ST Body (Blue) View
- #BZN540348 BlackZon Spryte ST Body (Red) View
- #BZN540349 BlackZon Spryte ST Body (Orange) View
Parts list for BlackZon #BZN540306, per manufacturer/distributor data.
Wheels & Tires (5)
- #BZN540324 BlackZon Spryte Wheels/Tires Assembled (Black/Green) View
- #BZN540325 BlackZon Spryte Wheels/Tires Assembled (Black/Blue) View
- #BZN540326 BlackZon Spryte Wheels/Tires Assembled (Black/Red) View
- #BZN540327 BlackZon Spryte Wheels/Tires Assembled (Black/Orange) View
- #BZN540333 BlackZon Wheel Lock Bolts ST2.6x12mm, 8pcs for Spryte View
Parts list for BlackZon #BZN540306, per manufacturer/distributor data.
Downloads & Specifications
Official manuals, exploded views and electronics guides from the manufacturer.
