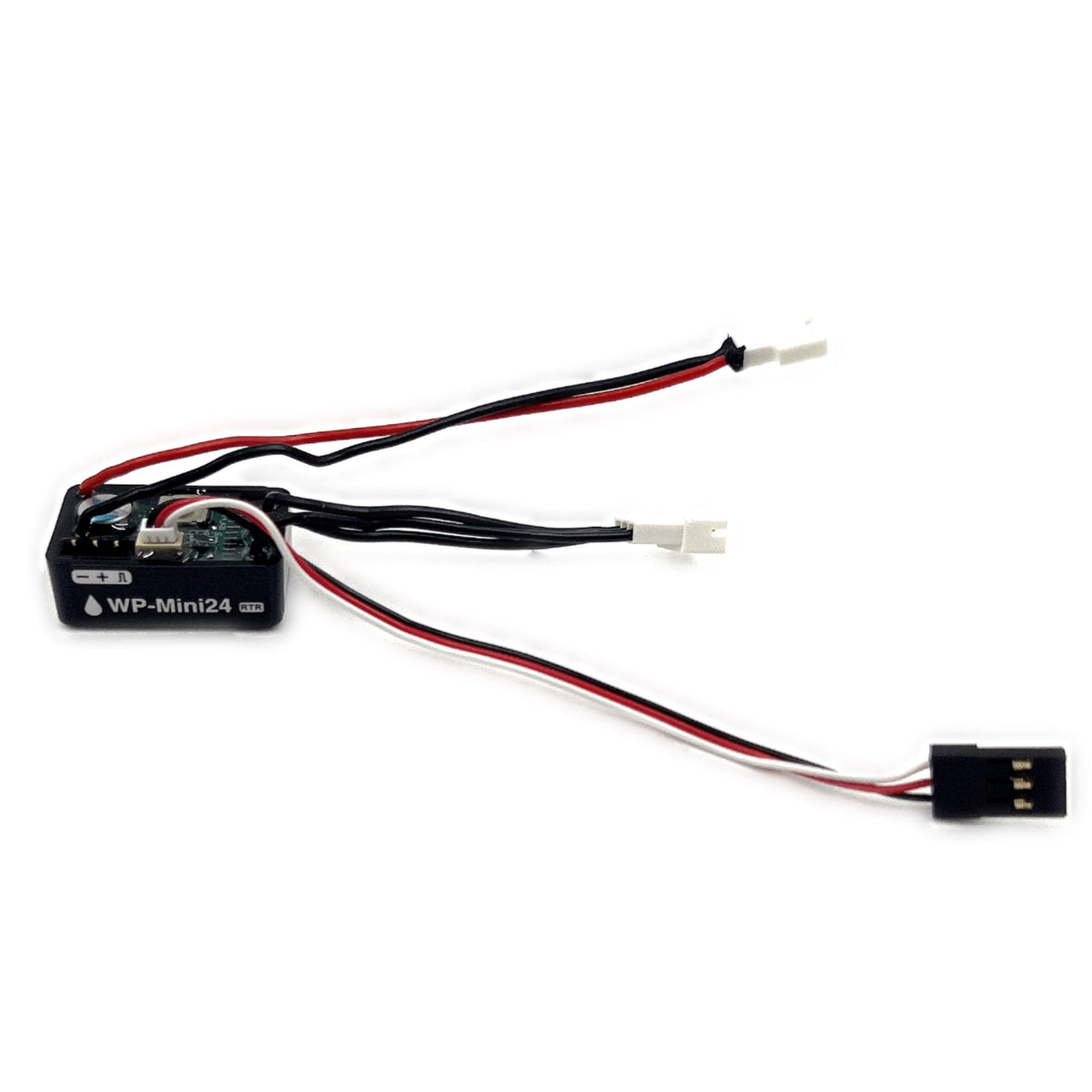

HP/HW WP Mini 24 2S-3S Crawler ESC

Overview

Genuine Hobby Plus part: HP/HW WP Mini 24 2S-3S Crawler ESC (part number HBP240490). Listed by the manufacturer for: Hobby Plus Juice Up. Check your model's parts list or manual to confirm fit before ordering.

Manufacturer specifications

• Battery Plug Type: JST-DS Connector 2.0mm
• Motor Plug Type: PH2.0-3PIN Female Connector
• Size: Length 28.1mm, Width 17.9mm, Height 12mm
• Weight: 10.8 grams includes all wires
• Cell Range: 2s-3s Lipo
• Motor Type: Sensorless Brushless
• Applicable Motors: Quicrun Outer 1621, Mainstream 1212, 1806 Sensorless
• BEC Output: 6V/Continuous Current of 1.5amps
• Continuous Current: 20amps
• Programming Port: Independent Programming Port

Specifications

What's in the Box

• HP/HW WP Mini 24 2S-3S Crawler ESC
