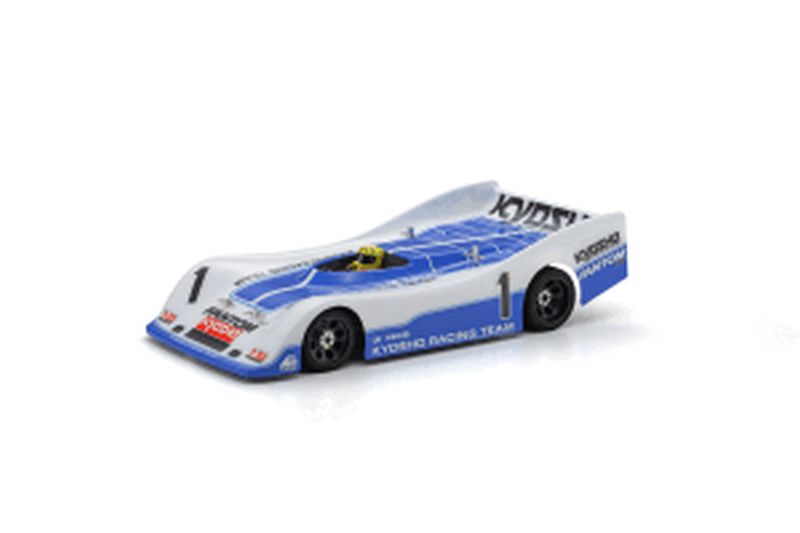

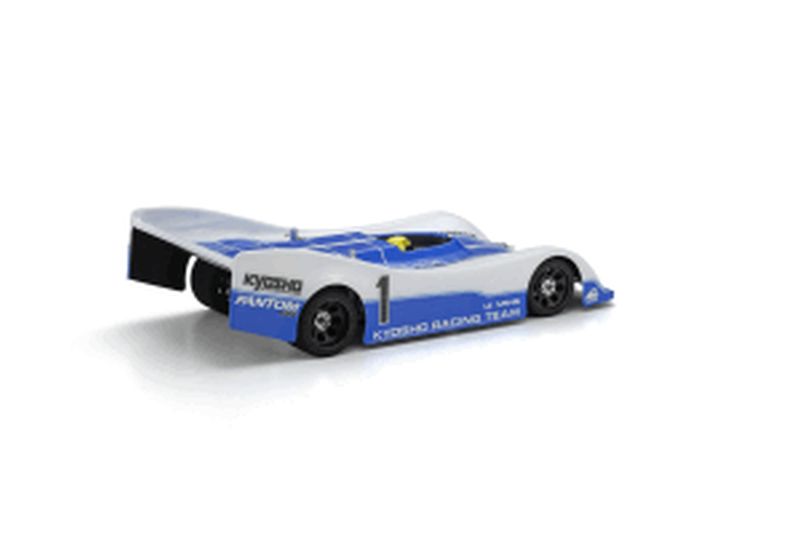

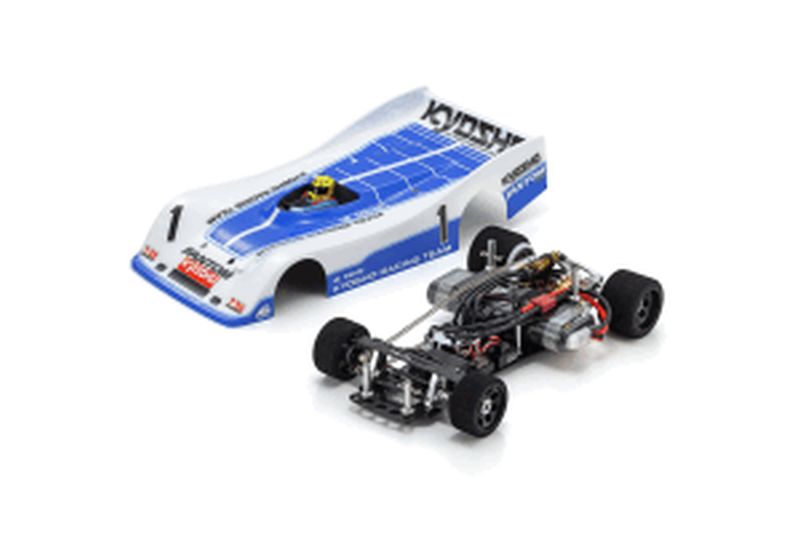

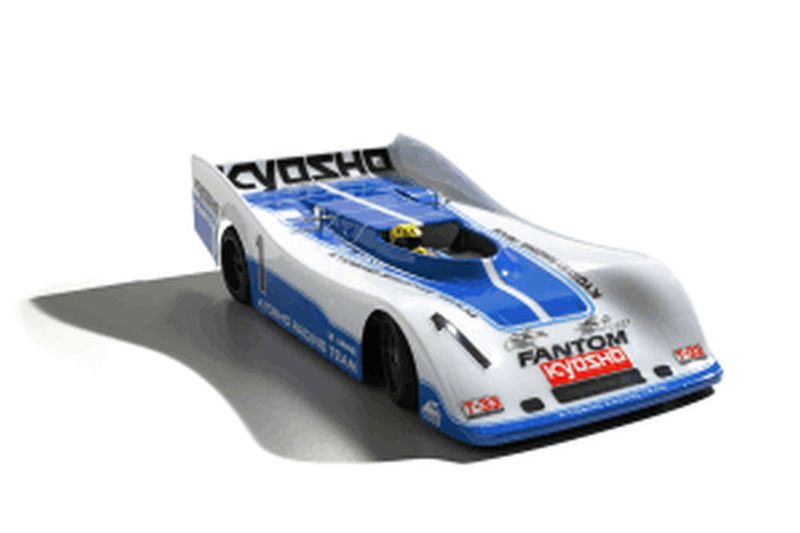

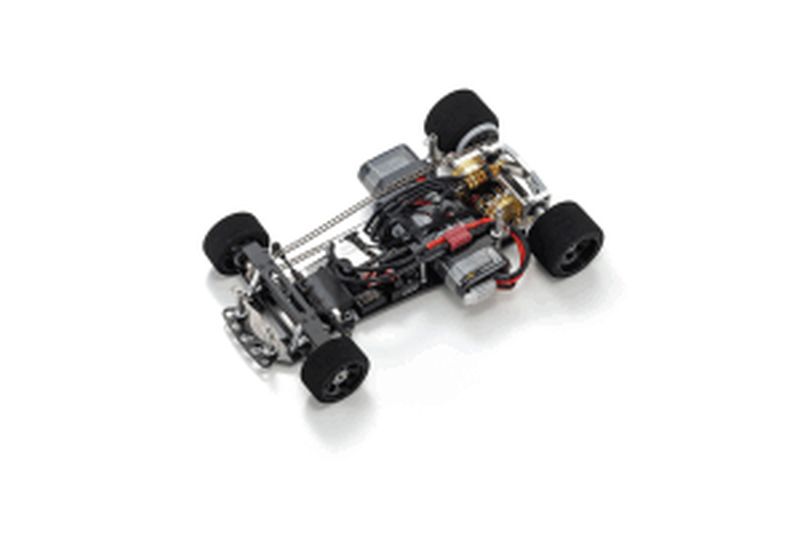

Fantom PZF T-33 KIT
Sale price
$319.99
Regular price $479.99
Kit Information
Overview
Genuine Kyosho kit: Fantom PZF T-33 KIT (part number KYO30640).
Specifications
| Brand | Kyosho |
|---|---|
| Part number | KYO30640 |
| Series | Kyosho Fantom |
| Scale | 1/10 |
What's in the Box
- Fantom PZF T-33 KIT
Chassis Components (4)
Drivetrain (13)
- #EF202B Diff. Gear (FANTOM EP-4WD) View
- #EF207S Front Axle Mount(FANTOM EP-4WD)
- #EF214B Front Axle (L/FANTOM EP-4WD) View
- #EF222 Pinion Gear(21T-48P/Long/FANTOM EP-4WD)
- #EF233S Rear Axle Mount(Silver/FANTOM Ext) View
- #EF237 Front Axle Ext (S/FANTOM Ext) View
- #EFW007-04 Ball Diff. Small Parts(6mm/FANTOM EP) View
- #EFW007S 6mm Ball Diff. Set(Carbom Shaft/Silver/FANTOM EP/PLAZMA) View
- #EFW007S-01 Ball Diff. Shaft(Carbom/6mm/Silver/FANTOM EP/PLAZMA) View
- #EFW007S-02 Ball Diff. Hub R(Silver/6mm/FANTOM EP/PLZMA) View
- #EFW007S-03 Ball Diff. Hub L(Silver/6mm/FANTOM EP/PLAZMA) View
- #EFW022 HD A Bar Joint Sat(FANTOM PZF) View
- #EFW022-01 Joint Maintenance Parts(FANTOM PZF) View
Suspension & Steering (8)
- #EF205 Suspension Arm (FANTOM EP-4WD)
- #EF240S-01 Rear Shock Parts(FANTOM Ext)
- #EF243 Front Spring(M/4pcs/FANTOM Ext) View
- #EF245S LW Knuckle Arm (Silver/2pcs/FANTOM EP) View
- #EFW014 Rear Ajuct Shock Conversion View
- #ORG02BK O-Ring(P2/Black) 10Pcs
- #ORG03B O-Ring(P3/Orange) 10Pcs View
- #SC222-02B Front Shock Spring(2pcs/Scorpion 2014)
Electronics (5)
Hardware (23)
- #1-E015 E-Ring(E1.5/10pcs)
- #1-E020 E-Ring(E2.0/10pcs)
- #1-N3033N Nut(M3x3.3) Nylon (5pcs) View
- #1-S02608TPB TP Bind Screw(M2.6x8/10pcs)
- #1-S12605H Button Screw(Hex/M2.6x5/10pcs)
- #1-S13008H Button Screw(Hex/M3x8/10pcs)
- #1-S13012H Button Screw(Hex/M3x12/10pcs)
- #1-S23006 Cap Screw(M3x6/5pcs)
- #1-S32606H Flat Head Screw (M2.6x6/10pcs)
- #1-S33006H Flat Head Screw(Hex/M3x6/10pcs)
- #1-S33008H Flat Head Screw(Hex/M3x8/10pcs)
- #1-S33012H Flat Head Screw(Hex/M3x12/10pcs)
- #1-S53003 Set Screw(M3x3/10pcs)
- #1-S53014 Set Screw(M3x14/5pcs)
- #1-W260705 Washer(M2.6x7x0.5/10pcs)
- #1-W300805 Washer(M3x8x0.5/10pcs)
- #92638 Snap Pin(10Pcs) View
- #96647 10x12mm Shim Set (0.1/0.2/4pcs) View
- #BRG034 Shield Bearing(6x15x5)2pcs
- #BRG405F Flange Bearing(4x8x3)2pcs
- #BRG410 Shield Bearing(6x10x3)2Pcs View
- #BRG411 Shield Bearing(6x12x4) 2Pcs
- #EF235 King Pin Ext(4pcs/FANTOM Ext) View
Oils, Grease & Tools (2)
Other Parts (8)
- #94752 Waterproofing Tape View
- #96441C Sponge Tape(1x100x150) View
- #EF218 Ladder Chain (FANTOM EP-4WD) EF218B
- #EF234 Front Sprocket Ext(FANTOM EP) View
- #EF239S Linkage Parts(Silver / FANTOM Ext) View
- #EFW007-07 Steel Ball 1-8inch 16pcs View
- #EFW007-71 SpurGear(71T-48P/FANTOM EP-4WD) View
- #MXW007 4.8 Brass Ball(12pcs) View
Parts list for Kyosho #KYO30640, per manufacturer/distributor data.
Chassis Components (1)
Drivetrain (13)
- #EF209B Rear Shaft (FANTOM EP-4WD)
- #EFW002 Carbon Gear Diff.Axle(FANTOM EP-4WD)
- #PNGS4816 Steel Pinion Gear(16T-48P) View
- #PNGS4817 Steel Pinion Gear(17T-48P) View
- #PNGS4818 Steel Pinion Gear(18T-48P) View
- #PNGS4820 Steel Pinion Gear(20T-48P) View
- #PNGS4821 Steel Pinion Gear(21T-48P) View
- #PNGS4822 Steel Pinion Gear(22T-48P)
- #PNGS4823 Steel Pinion Gear(23T-48P) View
- #PNGS4824 Steel Pinion Gear(24T-48P) View
- #PNGS4825 Steel Pinion Gear(25T-48P) View
- #PNGS4826 Steel Pinion Gear(26T-48P)
- #PNGS4827 Steel Pinion Gear(27T-48P)
Suspension & Steering (1)
- #EFW005 Carbon Suspension Arm(FANTOM EP-4WD)
Electronics (4)
- #37035 LE MANS 480 GOLD Brushless Motor 21.5T View
- #37051B LE MANS 240S ESC(60A/MAX 13.5T)W/C-Cable View
- #82278 Mini Servo KS3031-04M All Metal Gear
- #82286 Mini Servo KS20131-03M All Metal Gears View
Hardware (4)
- #BRG402F Flange Bearing(3x6x2.5) 2Pcs View
- #BRG406 Shield Bearing(5x8x2.5) 4Pcs View
- #BRG407 Shield Bearing(5x10x4) 4Pcs View
- #EFW004 Front Double Bearing(Gold/2pcs/FANTOM)
Oils, Grease & Tools (3)
- #YKW015B KANAI TOOL Hex Wrench Driver(1.5mm)
- #YKW025B KANAI TOOL Hex Wrench Driver(2.5mm)
- #YKW055BXB KANAI TOOL Box Driver(5.5mm)
Other Parts (4)
- #82262-120 Racing Sensor Cable(120mm) View
- #EFW013 フロントスプリングセット(ファントム EP-4WD)
- #PNGS4819 スチールピニオンギヤ(19T-48P)
- #36231 SP Knife Edge Reamer
Parts list for Kyosho #KYO30640, per manufacturer/distributor data.
Bodies & Accessories (6)
Parts list for Kyosho #KYO30640, per manufacturer/distributor data.
Wheels & Tires (15)
- #EF211 Front Wheel Hub (FANTOM EP-4WD)
- #EF213 Front Wheel Shaft (FANTOM EP-4WD)
- #EF244S LW Wheel Nut(Silver/4pcs/FANTOM EP) View
- #EFW007S-05 Ball Diff. Wheel Bolt(Silver/2pcs/FANTOM EP/PLAZMA) View
- #EF210 Rear Wheel Hub (FANTOM EP-4WD)
- #EF244G LW Wheel Nut(Gold/4pcs/FANTOM EP) View
- #EFH001BK Wheel(Black/F＆R 2pcs/FANTOM EP-4WD) View
- #EFH001WB Wheel (White/F＆R 2pcs/FANTOM EP-4WD) View
- #EFTH001BK Pre-Shaped Front Tire H38ﾟ(2pcs/BLACK/FANTOM EP) View
- #EFTH001W Pre-Shaped Front Tire H38ﾟ(2pcs/FANTOM EP-4WD) View
- #EFTH005BK Pre-Shaped Rear Tire L25ﾟ(2pcs/Black/FANTOM EP) View
- #EFTH005W Pre-Shaped Rear Tire L25ﾟ (2pcs/FANTOM EP-4WD) View
- #EFTH100W Pre-Shaped Small Tire(H=38φ45mm/L=25φ50mm)
- #EFW003B SP Rear Wheel Hub(L/FANTOM EP-4WD) View
- #EFW015 Wheel Wrench(5/5.5/12mm) View
Parts list for Kyosho #KYO30640, per manufacturer/distributor data.
