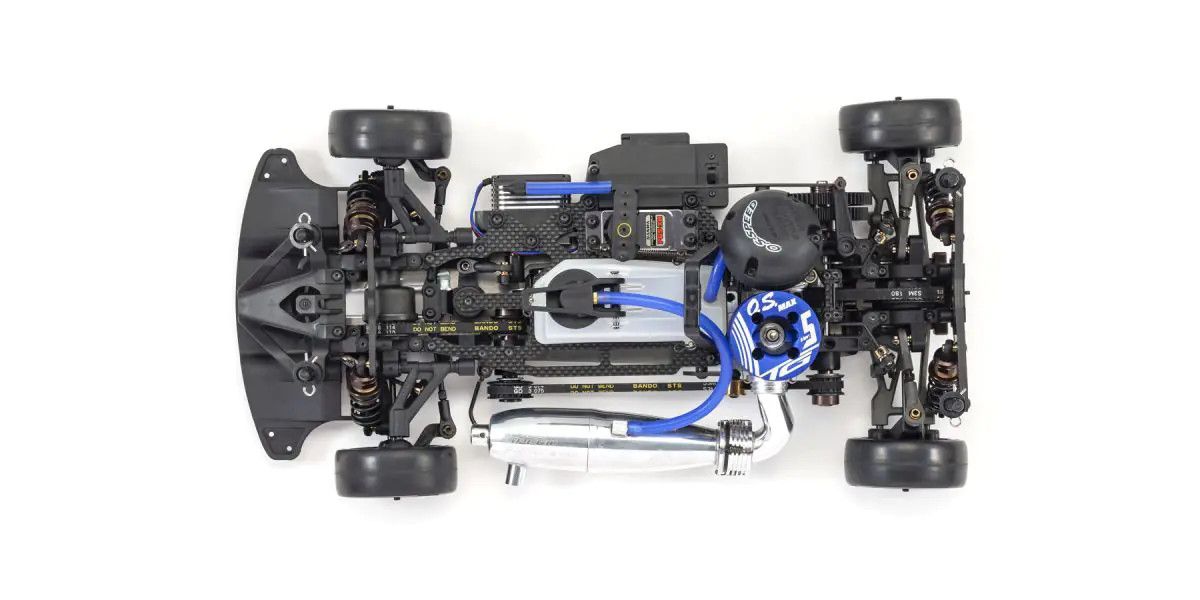

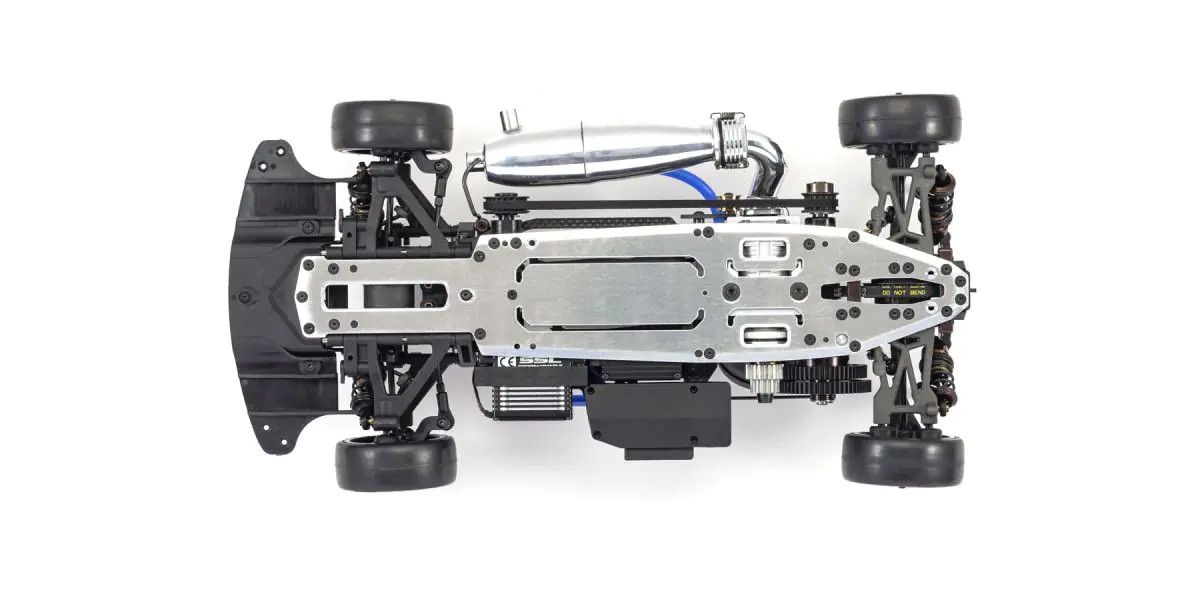

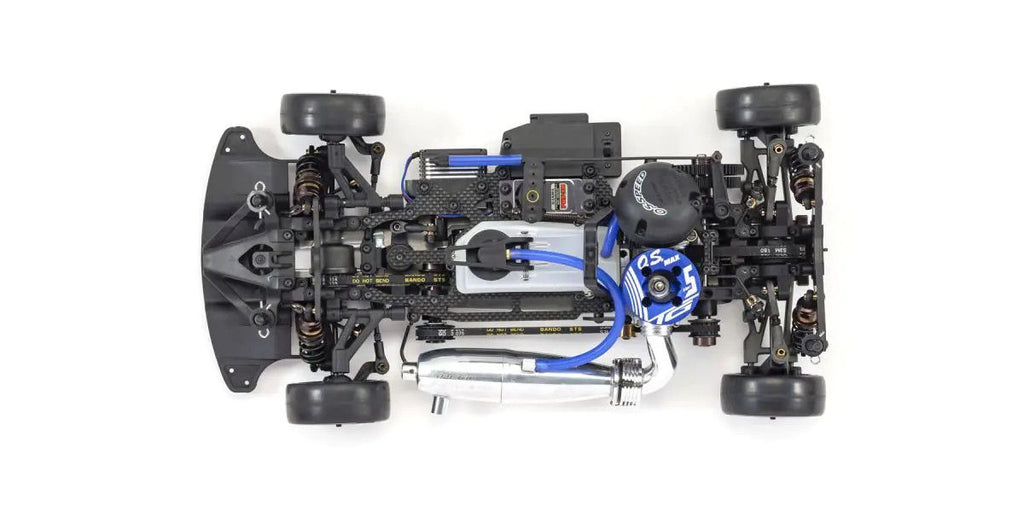

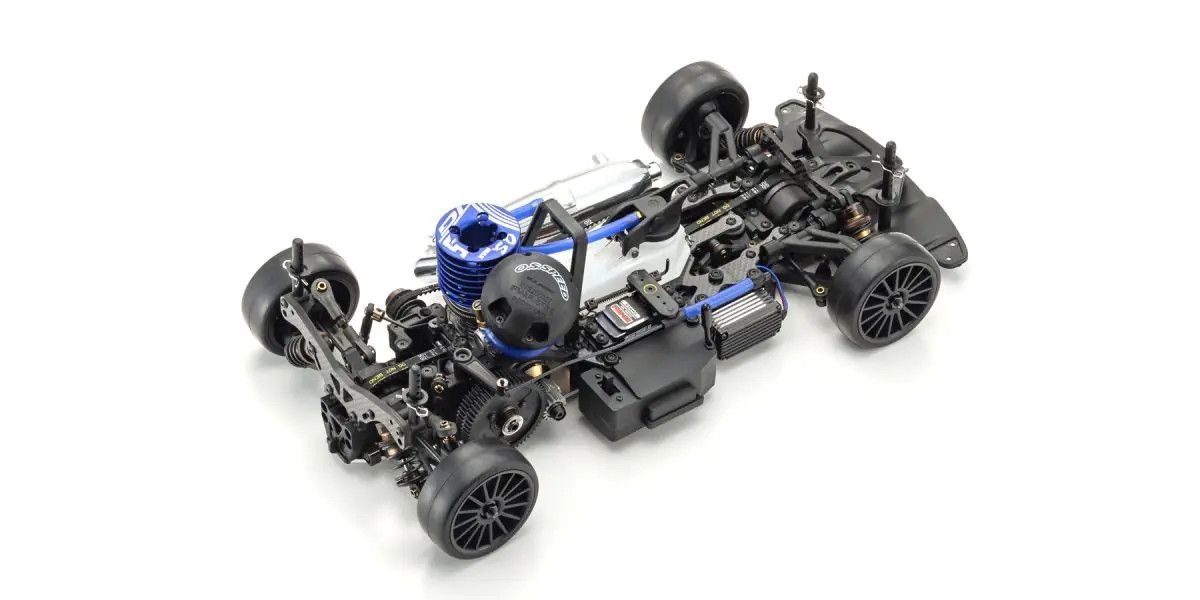

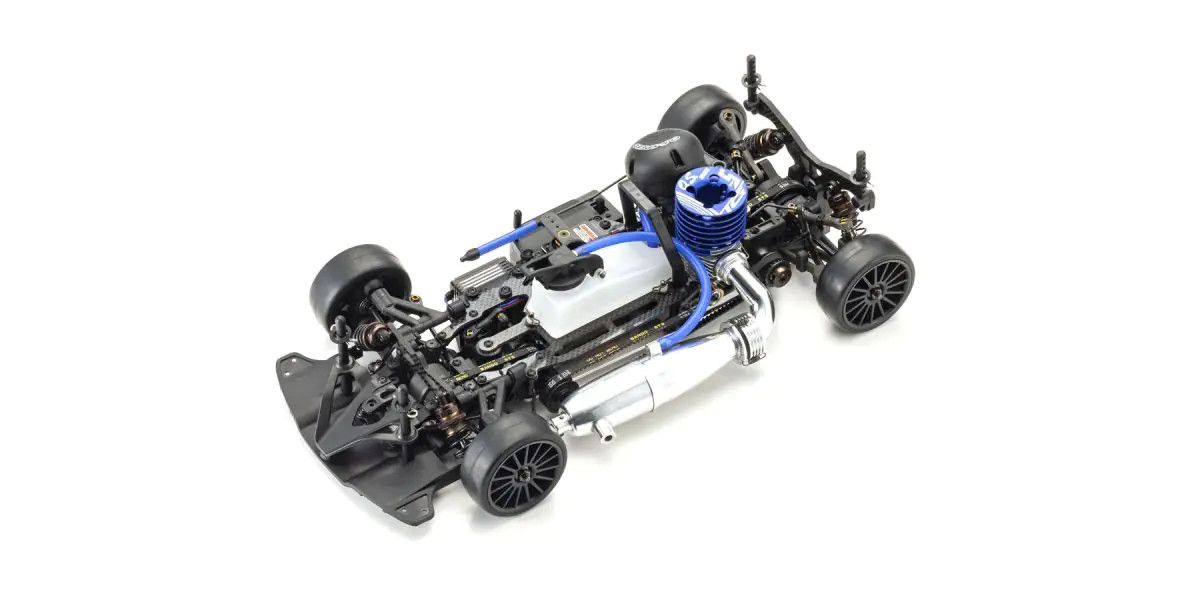

V One R4 Evo, .12-.15 Engine Powered Touring Car Series Pure Ten GP
KYO33217
$919.99
Kit Information
Overview
Genuine Kyosho radio-controlled model: V One R4 Evo, .12-.15 Engine Powered Touring Car Series Pure Ten GP (part number KYO33217).
Specifications
| Brand | Kyosho |
|---|---|
| Part number | KYO33217 |
What's in the Box
- V One R4 Evo, .12-.15 Engine Powered Touring Car Series Pure Ten GP
Chassis Components (11)
- #TF011B Bumper Set(TF-5)
- #VZ429B 2-Speed Shoe Holder (R4)
- #VZ466 Carbon Tensionner Plate (R4 Evo.)
- #VZ471 Bumper (R4 Evo.)
- #VZ473GM Aluminum Bumper Post (R4 Evo.)
- #VZ476GMC Lightweight 1st One-way Holder (R4 Evo.) View
- #VZ496 Bumper & Sus. Bush Set (R4 Evo.3/R4s) View
- #VZ501 Brake Pully Holder (R4 Evo.3) View
- #VZW441-02 Evo.2 Upper Deck(R4)
- #VZW456 Evo.3 Chassis Conversion(R4)
- #VZW456-01 Evo.3 Main Chassis(R4)
Drivetrain (24)
- #LAW50-2B Diff. Bevel Set(ZX6) LAW50-02B
- #UM613B Diff Bevel Shaft （2pcs/ULTIMA SC） View
- #VZ262C Rear Hub (SR/R4/R4s)
- #VZ402C Diff. Pulley Set (R4)
- #VZ403-01 Diff. Case Seal (for VZ403/R4/4pcs)
- #VZ412-61C 1st Spur Gear (61T/R4)
- #VZ413-56B 2nd Spur Gear (56T/R4)
- #VZ458 Drive Belt 189(R4 Evo.)
- #VZ459 Drive Belt 384(R4 Evo.)
- #VZ460 Drive Belt 180(R4 Evo.)
- #VZ462B Hard Rear Diff. Shaft (R4 Evo.) View
- #VZ469 Lightweight Main Shaft (R4 Evo.)
- #VZ477GMB Lightweight 2-Speed Gear Holder(R4 Evo.) View
- #VZ480GMB Pulley Adapter (Gunmetal)
- #VZ491 Drive Belt 387(R4sⅡ)
- #VZ492 Drive Guide Roller(R4sⅡ)
- #VZ500 Brake Shaft Set (R4 Evo.3) View
- #VZ502 One piece Side Shaft (R4 Evo.3) View
- #VZ511 5.8mm Hard Ball Joint(R4 Evo.3/2.5mm Hole/4pcs) View
- #VZW231-21C 2nd Hard Gear (0.8M/21T/RRR Evo./SR) View
- #VZW401-01 Swing Shaft (For Universal/56mm/1pc)
- #VZW401B Universal Swing Shaft Set (56mm/2pcs)
- #VZW442-07 Bell Guide Washer(Evo.2 3D Clutch/R4/VZW229-07）
- #VZW450 SP3D Racing Clutch Assy (OS12TG/R4)
Suspension & Steering (26)
- #97008-15B Adjust Rod(3x15mm/2pcs) View
- #LA43B Ball End(5.8mm/Black/12pcs) View
- #ORG078 O-Ring (0.78/Black/4pcs)
- #VSW030-01 2-Speed Clutch Spring(Soft/for GS15R)
- #VZ077B Upper Rod (4x20mm)
- #VZ201C Front Knuckle Arm(R4/R4s) View
- #VZ404B Front Suspension Arm Set (R4) View
- #VZ417B Front Upper Arm Shaft (R4/3x36mm/2pcs)
- #VZ418B Rear Lower Arm Shaft (R4/3x46.5mm/2pcs)
- #VZ438 Clutch Spring (φ1.7)
- #VZ468 Carbon Stabilizer Holder (R4 Evo.)
- #VZ503 Stabilizer Parts Set (R4) View
- #VZ504H Front Stabilizer Bar Set (Hard/R4/2.2-2.4) View
- #VZ505M Rear Stabilizer Bar Set(Medium/R4/1.8-2.0)
- #VZW435B Carbon Front Shock Stay(SS/R4sⅡ/R4Evo.)
- #VZW436B Carbon Rear Shock Stay(SS/R4sⅡ/R4Evo.)
- #VZW442-05 Clutch Plate＆Spring Holder Set(Evo.2 3D Clutch/R4)
- #VZW442-08 Clutch Spring(Evo.2 3D Clutch/φ1.8/VZ446)
- #W5184-05 Shock O-Ring(8Pcs) View
- #W5307-01 VVC Big Bore Short Shock Case(17.5/2pcs)
- #W5307-02B Shock Bush Set(2pcs)
- #W5307-03GM Spring Adjuster (14mm/Gunmetal/2pcs)
- #W5307-04 Shock Shaft (23mm/2pcs)
- #W5307-34 Spring (φ1.4x3x20/Green/3.0/2pcs)
- #W5308-01B LD Aluminum Spring Sheet(14mm/Gunmetal/2pcs)
- #W5308-15325B Spring (φ1.5x3.25x23/4.1/2pcs)
Engine & Fuel (6)
- #VZ087 Muffler Stay (for 3Pcs)
- #VZ414 Fuel Tank (R4)
- #VZ506 Hard Fuel Tank Post (R4 Evo.3) View
- #VZW442-02 Flywheel Nut＆Spling Set(Evo.2 3D Clutch/R4)
- #VZW442-04TG Clutch Shoe(Evo.2 3D Clutch/OS12TG/R4)
- #VZW456-02 Evo.3 One Piece Engine Mount(R4)
Electronics (6)
- #1708B Color Antenna(Black/4pcs) View
- #IF466B Center Diff. & Servo Mount Spacer Set(MP View
- #VZ411C Servo Saver set (R4)
- #VZ472 Receiver Box (R4 Evo.)
- #VZ497 Servo Saver Parts Set (R4 Evo.3/R4s) View
- #VZW456-03 Battery Tray Set(R4)
Hardware (48)
- #1-E050 E-Ring(E5.0/10pcs)
- #1-E070 E-Ring(E7.0/6pcs)
- #1-N2630N Nut(M2.6x3.0) Nylon (5pcs)
- #1-N3033N Nut(M3x3.3) Nylon (5pcs) View
- #1-N4045FA-GM Nut(M4x4.5)Flanged (Alumi/Gunmetal/4pcs)
- #1-S13006H Button Screw(Hex/M3x6/10pcs)
- #1-S13008H Button Screw(Hex/M3x8/10pcs)
- #1-S13010H Button Screw(Hex/M3x10/10pcs)
- #1-S13012H Button Screw(Hex/M3x12/10pcs)
- #1-S13015H Button Screw(Hex/M3x15/10pcs)
- #1-S23010 Cap Screw(M3x10/5pcs)
- #1-S23015 Cap Screw(M3x15/5pcs)
- #1-S32606H Flat Head Screw (M2.6x6/10pcs)
- #1-S33005H Flat Head Screw(Hex/M3x5/10pcs)
- #1-S33006H Flat Head Screw(Hex/M3x6/10pcs)
- #1-S33008H Flat Head Screw(Hex/M3x8/10pcs)
- #1-S53003 Set Screw(M3x3/10pcs)
- #1-S53006 Set Screw(M3x6/10pcs)
- #1-S53008 Set Screw(M3x8/10pcs)
- #1-S53012 Set Screw(M3x12/10pcs)
- #1-S54004 Set Screw(M4x4/10pcs)
- #1-S54008 Set Screw(M4x8/10pcs)
- #1-W260705 Washer(M2.6x7x0.5/10pcs)
- #1-W300705 Washer(M3x7x0.5/10pcs)
- #1-W301010 Washer(M3x10x1.0/10pcs)
- #1-W701105 Washer(M7x11x0.5/5pcs)
- #92638 Snap Pin(10Pcs) View
- #96641 3x5mm Shim Set (0.1/0.2/0.3mm/10pcs) View
- #96643 5x7mm Shim Set (0.1/0.2/0.3mm/10pcs) View
- #96646 12x15mm Shim Set (0.1/0.2/4pcs) View
- #96647 10x12mm Shim Set (0.1/0.2/4pcs) View
- #96648 5x12x0.15mm Shim(10pcs) View
- #97018-088 Pin (2x89.8mm/5pcs)
- #97059-01BK Aluminum Collar (3x7x1mm/Black/6pcs) View
- #97059-02BK Aluminum Collar (3x7x2mm/Black/6pcs) View
- #BRG014 Shield Bearing(10x15x4) 2Pcs View
- #BRG104 Thrust Bearing(5x10x4)1pc View
- #BRG406 Shield Bearing(5x8x2.5) 4Pcs View
- #BRG407 Shield Bearing(5x10x4) 4Pcs View
- #BRG411 Shield Bearing(6x12x4) 2Pcs
- #BRG414 Shield Bearing(10x15x4) 2Pcs View
- #BRG416 Shield Bearing(12x18x4) 2Pcs View
- #IH36 Snap Pin Set (10pcs/Mini Inferno)
- #VZ481GMB 10mm Screw Cap (Gunmetal/2pcs)
- #VZ498 9mm Ball Screw (4pcs) View
- #VZW456-04 Spare Screw Set
- #W0144GM Aluminum Collar (3x7x2mm/Gunmetal/6pcs)
- #W0145GM Aluminum Collar (3x7x1mm/Gunmetal/6pcs)
Oils, Grease & Tools (2)
- #ORG045SB Silicone O-Ring(P4.5/O/Slim) 15Pcs
- #ORG18 Silicone O-Ring (P18/Orange/3Pcs)
Other Parts (18)
- #92987C SP Brake Pad(GT2/R4Evo./R4sⅡ/FW-06)
- #96441C Sponge Tape(1x100x150) View
- #97015B Taper Collet(7mm/H=5.0/UM213) View
- #97049GM Linkage Stopper(2mm/Gunmetal/5pcs)
- #VZ246 Rubber Grommet(φ3x7x5/Ditchφ5/Length2m
- #VZ407B Center Block Set (R4)
- #VZ408B Small Parts Set (R4)
- #VZ409B Rear Bulk Set (R4)
- #VZ484GM 5mm Post(Gunmetal/R4 Evo./VZ221)
- #VZ485 2nd Shoe Set(R4 Evo.)
- #VZ495 Front Bulk Set (R4 Evo.3/R4s) View
- #VZ499 Throttle Linkage Set (R4 Evo.3/R4s) View
- #VZ508 5.8mm Hard Pillow Ball(R4 Evo.3/HEX2.5/4pcs) View
- #VZ509 6.8mm Hard Ball (R4 Evo.3/HEX2.5/4pcs) View
- #VZ510 5.8mm Hard Flange Ball(R4 Evo.3/Thin/4pcs) View
- #VZD02 デカール (R4 Evo.3) View
- #W5302-02 Pressure Form (φ8x4/4Pcs)
- #W5307-05 D11 Diaphragm (Fluorine Rubber/4pcs)
Parts list for Kyosho #KYO33217, per manufacturer/distributor data.
Chassis Components (12)
- #VZW428 Carbon Disk Plate Set(for R4)
- #VZW428-FL Carbon Disk Plate (for Front/L/1Pcs)
- #VZW428-FR Carbon Disk Plate (for Front/R/1Pcs)
- #VZW428-R Carbon Disk Plate (for Rear/1Pcs)
- #VZW439 Brass Rear Sus.Holder (R4Evo./R4sⅡ)
- #VZW458 Hard Rear End Plate(R4 Evo.3/R4s) View
- #36373 Multi Starter Box 3.0 View
- #80460 Pit Box DX
- #80461 PIT BOX
- #80463 PARTS BOX L
- #80464 PARTS BOX M
- #80466 PARTS BOX SS
Drivetrain (25)
- #VZ413-55B 2nd Spur Gear (55T/R4)
- #VZ470 Lightweight Middle Shaft (R4 Evo.)
- #VZW066-20B 1st Steal Gear (0.8M/20T/R4)
- #VZW066-21 1st Gear (0.8M/21T)(for RRR&FW05)
- #VZW066-22 1st Gear (0.8M/22T)(for RRR&FW05)
- #VZW066-23 1st Gear (0.8M/23T)(for RRR&FW05)
- #VZW215-15B 1st Gear (0.8M/15T)(for RRR)
- #VZW215-16B 1st Gear (0.8M/16T)(for RRR)
- #VZW215-17B 1st Gear (0.8M/17T)(for RRR)
- #VZW230-15C 1st Hard Gear (0.8M/15T/R4 Evo./SR)
- #VZW230-17B 1st Hard Gear (0.8M/17T/RRR Evo/SR)
- #VZW231-22B 2nd Hard Gear (0.8M/22T/RRR Evo./SR)
- #VZW412 Aluminum Diff. Case Cap (R4)
- #VZW438 Aluminum Middle Shaft Mount(R4Evo./R4sⅡ）
- #VZW442-06 Clutch Bell(Evo.2 3D Clutch/R4/VZW229-06)
- #VZW444 V2 Aluminum Clutch Bell (R4 Evo.2)
- #VZW445 Full Aluminium Unversal Swing Shaft Set
- #VZW445-01 Aluminium Swing Shaft(1pc/VZW445/R4 Evo.
- #VZW447-01 Oneway Shaft Set(for VZW447)
- #VZW448 V3 Aluminum Clutch Bell(R4 Evo.2/VZW442-04TG) View
- #VZW452 SP Drive Belt 189(R4/Front)
- #VZW453 SP Drive Belt 384(R4/Center/23T)
- #VZW454 SP Drive Belt 387(R4/Center/24T)
- #VZW455 SP Drive Belt 180(R4/Rear)
- #VZW459 One Piece Brake Pulley(R4/21T) View
Suspension & Steering (17)
- #97008-20B Adjust Rod(3x20mm/2pcs) View
- #VZ084SS Front Stabilizer Set (Super Soft)
- #VZW420 Rear Stabilizer Holder (R4)
- #VZW427 Aluminum Upper arm Stiffener (R4)
- #VZW433-01 Carbon Upper Arm Plate Set(for VZW433)
- #VZW457 Front Mass Damper(R4) View
- #W5307-07GM Aluminum Spring Sheet(14mm/Gunmetal/2pcs
- #W5307-08 D11 Shock Piston(4-1.1/2pcs)
- #W5307-09B D11 Shock Piston(3-1.1/2pcs)
- #W5307-11 D11 Shock Piston(2-1.1/2pcs)
- #W5307-12 D11 Shock Piston(2-1.2/2pcs)
- #W5307-28B Spring (φ1.4x3.625x20/2.5/2pcs)
- #W5307-29B Spring (φ1.4x3.50x20/2.6/2pcs) View
- #W5307-30B Spring (φ1.4x3.375x20/Red/2.7/2pcs) View
- #W5307-32B Spring (φ1.4x3.25x20/2.8/2pcs)
- #W5307-33B Spring (φ1.4x3.125x20/2.9/2pcs) View
- #36218 Shock Absorber Pits Holder W/Magnet View
Engine & Fuel (8)
- #1876 Fuel Tank Filter View
- #VZ475GM Engine Mount (R4 Evo.)
- #VZ482GM Muffler Stay Holder (Gunmetal/VZ086)
- #VZW434 HD One Piece Engine Mount (R4 Evo.)
- #VZW442-04Y Clutch Shoe(Evo.2 3D Clutch/Yellow/R4)
- #80167 Flywheel Wrench
- #96169B Air Cleaner Oil(100cc) View
- #96187B HG Air Cleaner Oil(Blue/100cc) View
Electronics (9)
- #37061 Low Profile Servo LE MANS240S KS4241-08M View
- #74906 Plug(for KE engine series) View
- #VZW437-0 Aluminum Servo Saver (+0/R4Evo./R4sⅡ)
- #VZW437-2 Aluminum Servo Saver (+2/R4Evo./R4sⅡ)
- #VZW443-01B Servo Horn Adapter(for VZW443)
- #VZW443B Aluminum Steering Servo Horn(R4/Gunmetal)
- #71322C SPEED HOUSE 7.2V 22HV Ni-MH Battery
- #71324B SPEED HOUSE 7.2V 36HV Ni-MH Battery
- #71352 SPEED HOUSE Ni-MH 6V-1600mAh RX/Straight
Hardware (5)
- #96046 6x8mm Shim Set (0.1/0.2/0.3mm/10pcs) View
- #VZW432-2 Lightweight Sus.Ball Screw(9mm/2pcs/7075
- #VZW432-4 Lightweight Sus.Ball Screw(9mm/4pcs/7075
- #VZW446-01 Collar(4pcs/for VZW446/R4 Evo.2)
- #VZW449 V2 Lightweight Sus.Ball Screw(9mm/4pcs)
Oils, Grease & Tools (35)
- #96183BLB Color Silicone Tube(2.3x1000/Blue) View
- #96183SGB Color Silicone Tube(2.3x1000/Smoke Grey) View
- #ORG03XRB Grooved O-Ring (P3/for Oil Shock/Orange)
- #80165B Cross Wrench (5.5/7.0/8.0/10mm) View
- #80462 TOOL BOX
- #96162 Ring Gear Grease View
- #96508B HG Joint Grease View
- #SIL0400-8B Silicone OIL #400 (80cc) View
- #SIL0450-8B Silicone OIL #450 (80cc) View
- #SIL0500-8B Silicone OIL #500 (80cc) View
- #SIL0550-8B Silicone OIL #550 (80cc) View
- #SIL0650-8B Silicone OIL #650 (80cc) View
- #SIL0750-8B Silicone OIL #750 (80cc) View
- #SIL1000000 Silicone OIL #1000000 (40cc) View
- #SIL100000B Silicone OIL #100000 (40cc) View
- #SIL10000C Silicone OIL #10000 (40cc) View
- #SIL200000 Silicone OIL #200000 (40cc)
- #SIL20000B Silicone OIL #20000 (40cc) View
- #SIL300000 Silicone OIL #300000 (40cc) View
- #SIL30000B Silicone OIL #30000 (40cc) View
- #SIL40000B Silicone OIL #40000 (40cc) View
- #SIL500000 Silicone OIL #500000 (40cc) View
- #SIL50000B Silicone OIL #50000 (40cc) View
- #SIL5000C Silicone OIL #5000 (40cc) View
- #SIL60000B Silicone OIL #60000 (40cc)
- #SIL6000B Silicone OIL #6000 (40cc)
- #SIL7000C Silicone OIL #7000 (40cc) View
- #YKW015B KANAI TOOL Hex Wrench Driver(1.5mm)
- #YKW015BPB KANAI TOOL Ball Point Driver(1.5mm)
- #YKW020BPB KANAI TOOL Ball Point Driver(2.0mm)
- #YKW025B KANAI TOOL Hex Wrench Driver(2.5mm)
- #YKW030B KANAI TOOL Hex Wrench Driver(3.0mm)
- #YKW030BPB KANAI TOOL Ball Point Driver(3.0mm)
- #YKW055BXB KANAI TOOL Box Driver(5.5mm)
- #YKW070BXB KANAI TOOL Box Driver(7.0mm)
Other Parts (27)
- #1700BK Color Strap(S/Black)18pcs
- #1701BK Color Strap(M/Black)18pcs
- #92035-56 KC Mold Inner(φ56/Yellow/4pcs) View
- #92035-58 KC Mold Inner(φ58/Red/4pcs) View
- #92696 Brake Disk Pad(2Pcs)
- #92986 Soft Brake Lining
- #VZ084 Front Stublizer Set
- #VZ084S Front Stublizer Set(Soft/V-One SⅡ/RR Ev
- #VZ406BH Hard Front Bulk Set (R4/R4s)
- #VZ409HB Hard Rear Bulk Set (R4/R4s)
- #VZ495H Hard Front Bulk Set(R4 Evo.3/R4s) View
- #VZW403 Rear Balance Weight (1pc/For R4)
- #VZW423 Aluminum Upper Bulk Set (L/R/R4)
- #VZW430-08 Front Weight (8g/Brass)
- #VZW431 Aluminum Brake Lever (R4Evo./R4/R4s)
- #VZW433 V2 Aluminum Rear Bulk Upper Set(R4Evo./R
- #VZW446 V2 Aluminum Front Upper Bulk Set(L/R/R4 Evo.2)
- #VZW447 FTT Oneway Unit(R4Evo.2/R4sⅡ)
- #VZW447-02 Maintenance Kit(for VZW447)
- #W5307-06 Pressure Foam (φ8x2/4Pcs)
- #W5307-10 D11 Diaphragm (Soft/4pcs)
- #36231 SP Knife Edge Reamer
- #36231P SP Knife Edge Reamer Plus View
- #87613C KYOSHO Carring Bag S
- #87615C KYOSHO Carrying Bag L
- #96165B Aluminum Tape(40x2500mm) View
- #YKW011 Spanner (5.5-7.0) View
Parts list for Kyosho #KYO33217, per manufacturer/distributor data.
Bodies & Accessories (1)
Parts list for Kyosho #KYO33217, per manufacturer/distributor data.
Wheels & Tires (7)
- #VZ507 Evo.3 Wheel Hub (R4/2pcs) View
- #92012-8BKC Aero 24 Wheel (15-Spork/Black) 8pc
- #92012-8KYC Aero 24 Wheel(15-Spork/Fluorescence Yell View
- #92019H KC-Slicks Tire V2 (Hard/#36/2pcs) View
- #92019M KC-Slicks Tire V2 (Medium/#32/2pcs) View
- #92019S KC-Slicks Tire V2 (Soft/#28/2pcs) View
- #VZW440B Aluminum Wheel Shaft(2pcs/for Universal)
Parts list for Kyosho #KYO33217, per manufacturer/distributor data.
Downloads & Specifications
Official manuals, exploded views and electronics guides from the manufacturer.
